Telephone aerial, bumper

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

The bumper telephone aerial is the transceiver aerial for the rear compartment telephone. The bumper telephone aerial is fitted depending on the selected optional equipment.

A connection with the GSM network is established with the help of the bumper telephone aerial. The aerial is divided into a left and right section to reduce shadowing by the vehicle. The division of the aerial improves the receiving power.

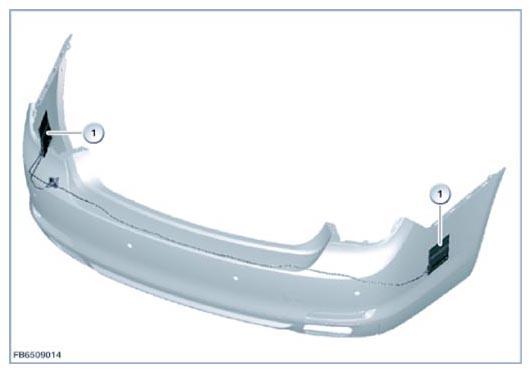

Fig 1: Identifying 2-Section Telephone Aerial (Bumper)

Courtesy of BMW OF NORTH AMERICA, INC.

Item	Explanation
1	2-section telephone aerial, bumper
