High-beam assistant

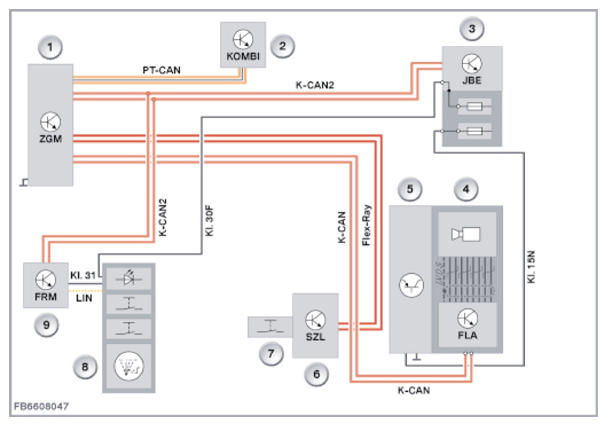

When solely a high-beam assistant (5AC) is installed, the system network looks like:
| Item | Explanation |
|---|---|
| 1 | Central gateway module (ZGM) |
| 2 | Instrument panel (KOMBI) |
| 3 | Junction Box Electronics (JBE) |
| 4 | Video camera with high-beam assistant control unit (FLA) |
| 5 | Interior mirror |
| 6 | Steering column switch center (SZL) |
| 7 | High beam assistant button |
| 8 | Light switch |
| 9 | Footwell module (FRM) |
The video camera monitors the near field of the vehicle for light sources. Traffic driving in front or approaching is identified at a distance of approx. 400 meters. The detection range of the video cameras is approx. 1000 meters. The video camera field of view has a horizontal side angle of approx. 15° to the left and right. The video camera field of view has a vertical elevation angle of approx. 5° up and down. The video camera records points of light when it is in operation. Distinction can be drawn between different parameters such as light color and light intensity.
The recorded light points, light colors and light intensities picked are evaluated by the KAFAS control unit. After evaluation the control unit gives a recommendation to switch on or off. The KAFAS or FLA control unit transmits the recommendation to the footwell module. The recommendation to switch on or off also incorporates the driving speed. At speeds below 38 km/h the high-beam assistant is switched off. At a speed higher than 50 km/h it is switched on depending on all other parameters. The high-beam headlight is not switched on when the vehicle is in an environment with sufficient lighting. The KAFAS control unit (or FLA) transmits a deactivation recommendation to the footwell module (FRM).
