System functions: Notes
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
The following system functions are described for CHAMP:
- Tuner
- Audio System Controller
- CHAMP user interface
- CHAMP gateway

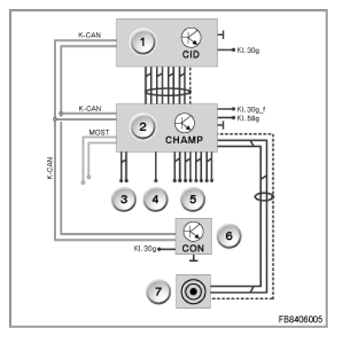

| Index | Explanation |
|---|---|
| 1 | Central Information Display (CID) |
| 2 | Central Head Unit and Multimedia Platform (CHAMP) |
| 3 | To the antenna diversity |
| 4 | To the antenna diversity |
| 5 | To the loudspeakers |
| 6 | Controller (CON) |
| 7 | AUX-In connection |
| K CAN | Body CAN |
| Terminal 30g | Terminal 30 switched |
| Terminal 30g_f | In the event of a fault, terminal 30 switches at the MOST |
| Terminal 58g | Locating light |
| MOST | Media Oriented System Transport (fibre-optic cable) |
