CON: Controller
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
The controller delivers the signals for selection of the menus and sub-menus. The sub-menus are selected by turning and/or pushing the controller. When released, the controller always returns to its rest position.

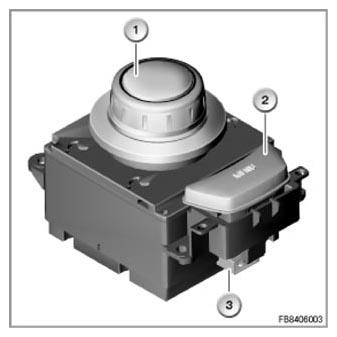

| Index | Explanation |
|---|---|
| 1 | Controller |
| 2 | MENU button |
| 3 | Plug-in connection at the controller |
The MENU button is behind the controller. This button can be used to open the start menu in the Central Information Display. The controller is connected to the K-CAN (body CAN). Terminal 58g receives the controller via the K-CAN.
