CID: Central Information Display
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
The CID is the central graphical display unit. The size of the color monitor is 6.5".

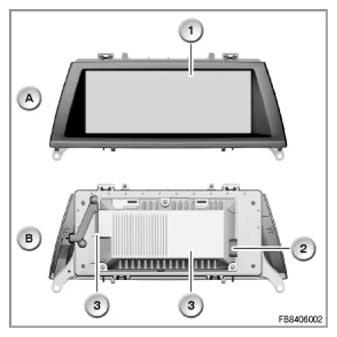

| Index | Explanation |
|---|---|
| A | Front |
| B | Back |
| 1 | Central Information Display (CID) |
| 2 | Plug-in connection for LVDS data line |
| 3 | Plug-in connection for CAN bus and power supply |
The Central Information Display is connected by an LVDS data line (Low Voltage Differential Signalling) on the CHAMP. The LVDS data line involves technology that reliably transfers graphical data over a longer distance. For the LVDS data line, special plug connections have been developed.
The CID is also connected on the K-CAN (body CAN).
The CID contains a photo-transistor for brightness control of the LC display (depending on the surrounding brightness). The LC display is heated.
