Bang & Olufsen High End Surround Sound System: Notes
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Depending on the vehicle equipment, the audio playback can be optimized using the Bang & Olufsen High End Surround Sound System.
In addition to the "Bang & Olufsen" labelling on the speaker covers, this system has the following identifying features:
- Extendible dashboard speaker
- Illuminated speaker cover
- "Bang & Olufsen" menu item in the Central Information Display (CID)
The advantages and particular features of the vehicle equipment with the Bang & Olufsen High End Surround Sound System are:
- Linear playback
- Pulse response
- Low distortion
- High volume level
- Automatic volume control and tone setting

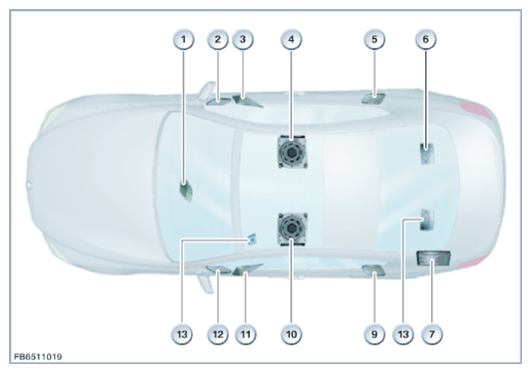

The following describes the Bang & Olufsen High End Surround Sound System using the example of F13.
| Item | Explanation |
|---|---|
| 1 | Extendible dashboard speaker |
| 2 | Tweeter, front door, right |
| 3 | Mid-range speaker, front door, right |
| 4 | Bass speaker, front right |
| 5 | Rear right surround speaker |
| 6 | Rear speaker, right storage shelf |
| 7 | High End audio amplifier (AMPT) |
| 8 | Rear speaker, left storage shelf |
| 9 | Rear left surround speaker |
| 10 | Bass speaker, front left |
| 11 | Mid-range speaker, front door, left |
| 12 | Tweeter, front door, left |
| 13 | Microphone |
