System overview
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

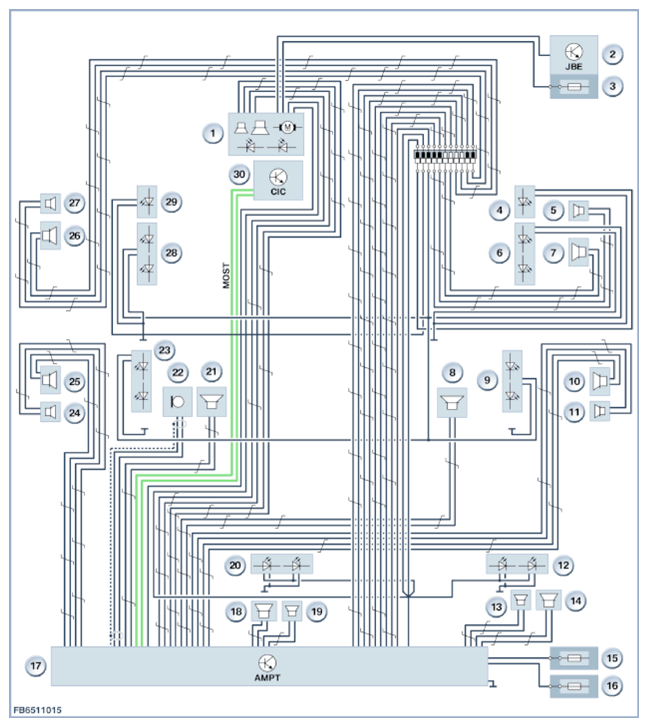

| Item | Explanation |
|---|---|
| 1 | Extendible dashboard speaker |
| 2 | Junction Box Electronics (JBE) |
| 3 | Front fuse and relay module |
| 4 | Illuminated speaker cover for tweeter, front door, right |
| 5 | Tweeter, front door, right |
| 6 | Illuminated speaker cover for midrange speaker, front door, right |
| 7 | Mid-range speaker, front door, right |
| 8 | Bass speaker, front right |
| 9 | Illuminated speaker cover for speaker, rear right |
| 10 | Rear right surround mid-range speaker |
| 11 | Rear right surround tweeter |
| 12 | Illuminated speaker cover for speaker, storage shelf, right |
| 13 | Tweeter, storage shelf, right |
| 14 | Mid-range speaker, storage shelf, right |
| 15 | Power distribution box, rear |
| 16 | Power distribution box, battery |
| 17 | High End audio amplifier (AMPT) |
| 18 | Mid-range speaker, storage shelf, left |
| 19 | Tweeter, storage shelf, left |
| 20 | Illuminated speaker cover for speaker, storage shelf, left |
| 21 | Bass speaker, front left |
| 22 | Microphone |
| 23 | Illuminated speaker cover for speaker, rear left |
| 24 | Rear left surround tweeter |
| 25 | Rear left surround mid-range speaker |
| 26 | Mid-range speaker, front door, left |
| 27 | Tweeter, front door, left |
| 28 | Illuminated speaker cover for midrange speaker, front door, left |
| 29 | Illuminated speaker cover for tweeter, front door, left |
| 30 | Headunit |
