Video changeover switch
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
The automatic video changeover switch is a hardware solution to toggle between two video sources in the vehicle. Video sources in the vehicle:
- Back-up camera
- DVD changer
The back-up camera is the master controller. The DVD changer is the slave.
If the video signals of the two video sources arrive at the video changeover switch simultaneously, only the video signal from the back-up camera is switched through to the output of the video changeover switch.
If the video signal from the back-up camera is not present, the video signal from the DVD changer is switched through. The video changeover switch means that the back-up camera can be offered in conjunction with the optional extra "DVD changer, 6-way" even without the optional extra "TV function".

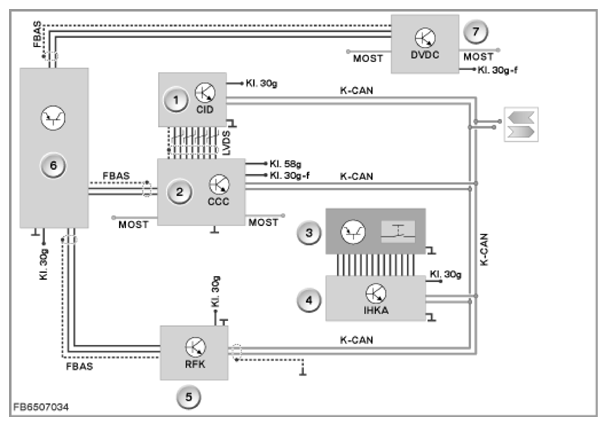

| Index | Explanation |
|---|---|
| 1 | Central Information Display (CID) |
| 2 | Head unit (CCC: Car Communication Computer) |
| 3 | PDC button in the center console switch cluster |
| 4 | Integrated automatic heating and air conditioning system (IHKA) |
| 5 | Back-up camera (RFK) |
| 6 | Video changeover switch |
| 7 | DVD changer (DVDC) |
| CVBS | Composite Video Burst Synch signal or RGB signals (depending on the national version) |
| K CAN | Body CAN |
| Terminal 30 | Terminal 30 |
| Terminal 30g | Terminal 30 switched |
| Terminal 30g-f | Terminal 30g-f |
| Terminal 58g | Terminal 58g, locating light |
| LVDS | Data wire (Low Voltage Differential Signalling) |
| MOST | Fiber Optics |
