Functional networking of Professional telematics
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

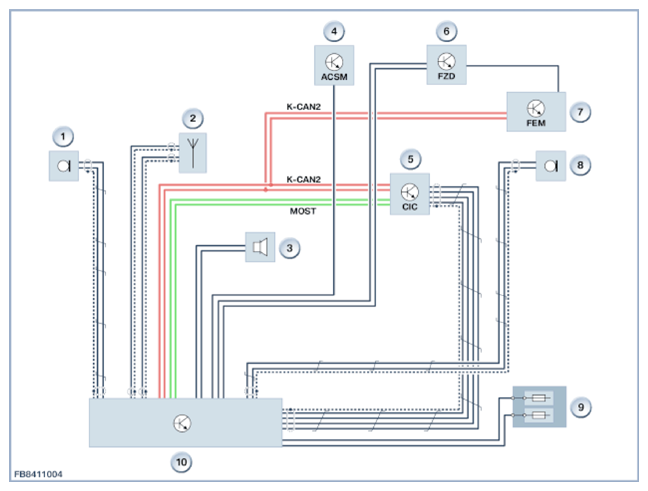

The following graphic shows the functional networking of the BMW Telematics Professional with the example F30.
| Item | Explanation |
|---|---|
| 1 | Microphone |
| 2 | Aerial |
| 3 | Emergency loudspeaker |
| 4 | Crash Safety Module (ACSM) |
| 5 | Headunit |
| 6 | Roof function center (FZD) |
| 7 | Front Electronic Module (FEM) |
| 8 | Microphone 2 |
| 9 | Power distribution box, rear |
| 10 | Telematics control unit |
