Enhanced emergency call

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

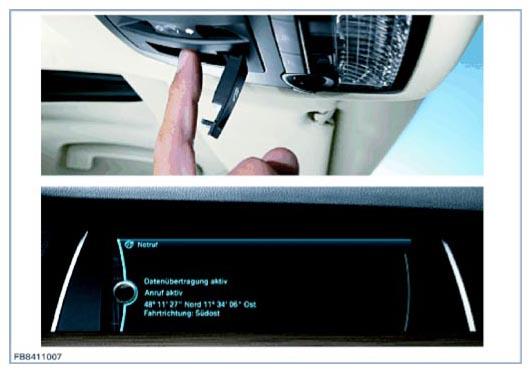

The following graphic shows the operation of the emergency call button on the roof function center (FZD) and the representation of the data transfer in the central information display.

Fig 1: Pressing Emergency Call Button
G09841248Courtesy of BMW OF NORTH AMERICA, INC.

The enhanced emergency call function guarantees quick assistance in the event of an accident. The emergency call can be operated manually by pressing the emergency call button in order to organize assistance for other road users for example. The emergency call is activated in relation to the vehicle and transfers information on the accident severity and the number of injured people in the vehicle to the BMW Call Center. The vehicle location is identified with the transmission of the GPS signals and rescue services informed at the same time.
