Automatic luggage compartment lid actuation (HKL)
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

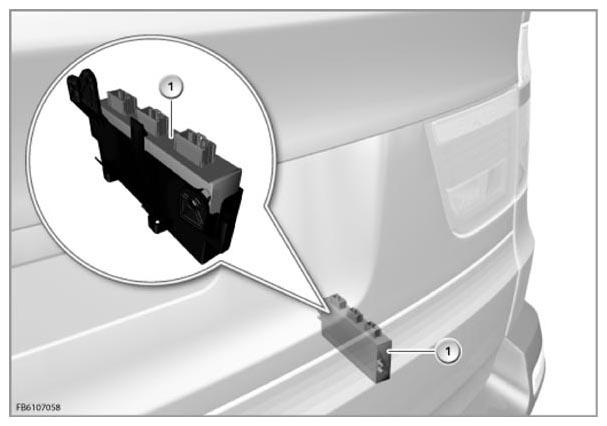

| Item | Description |
|---|---|
| 1 | Automatic luggage compartment lid actuation control unit |
The automatic luggage compartment lid actuation (HKL) is fitted in the luggage compartment on the right on the equipment holder. The HKL controls and monitors the function of the automatic luggage compartment lid actuation.
The control logic is connected to terminal 30g. For the load current of the spindle drives, the HKL is also connected to terminal 30.
The automatic luggage compartment lid actuation functions between 9 V and 16 V. Outside of this range, the functions cannot be maintained.
