Microswitch, lower tailgate
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

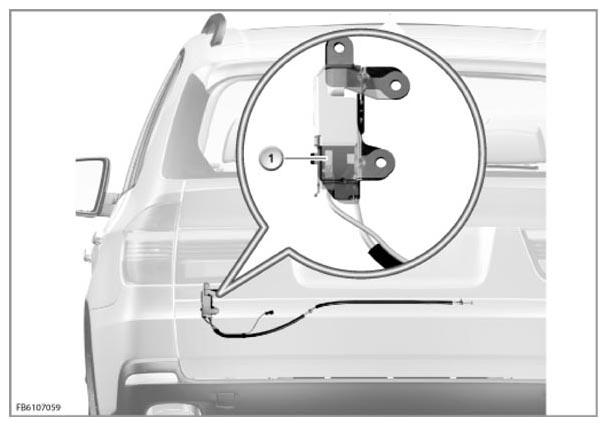

| Item | Description |
|---|---|
| 1 | Microswitch, lower tailgate |
The contact of the lower tailgate is designed as a microswitch and it switches to earth. The status of the microswitch is evaluated by the HKL. If the lower tailgate is not correctly closed, the automatic luggage compartment lid actuation cannot be executed. The automatic luggage compartment lid actuation control unit generates a Check Control message.
