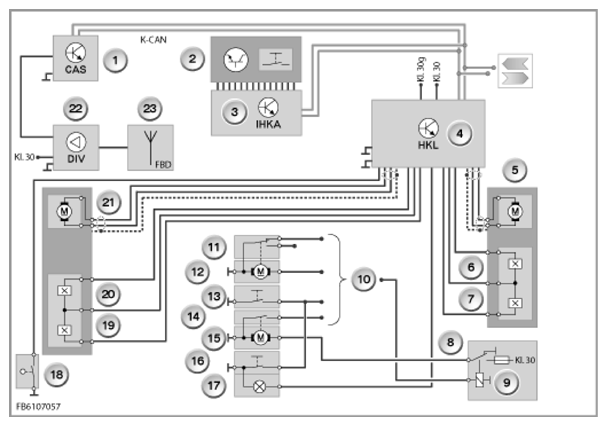

System wiring diagram - E70
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Car Access System (CAS) |
| 2 | Tailgate pushbutton in the center console control panel |
| 3 | Integrated automatic heating/air conditioning system (IHKA) |
| 4 | Automatic luggage compartment lid actuation (HKL) |
| 5 | Spindle drive motor, right |
| 6 | hall effect sensor, right |
| 7 | hall effect sensor, right |
| 8 | Power distribution box, rear |
| 9 | Automatic Soft Close system (SCA) relay |
| 10 | Connections to the junction box control unit |
| 11 | Rear lid contact switch |
| 12 | Motor for lock in upper tailgate |
| 13 | Tailgate pushbutton, outside tailgate |
| 14 | Automatic Soft Close system drive contact |
| 15 | Automatic Soft Close system motor, tailgate |
| 16 | Tailgate pushbutton, inside tailgate |
| 17 | Interior light for tailgate pushbutton on tailgate |
| 18 | Microswitch under tailgate (only E70) |
| 19 | hall effect sensor, left |
| 20 | hall effect sensor, left |
| 21 | Spindle drive motor, left |
| 22 | Combined booster |
| 23 | Remote control receiver |
