Display concept: Displays related to MSA

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

A display appears in the instrument cluster whenever the MSA switches off the engine. The following symbol appears in the LC display between the round instruments:

Fig 1: Display - MSA Button Screen

Courtesy of BMW OF NORTH AMERICA, INC.

Two supplementary Check Control messages are also available for the MSA.

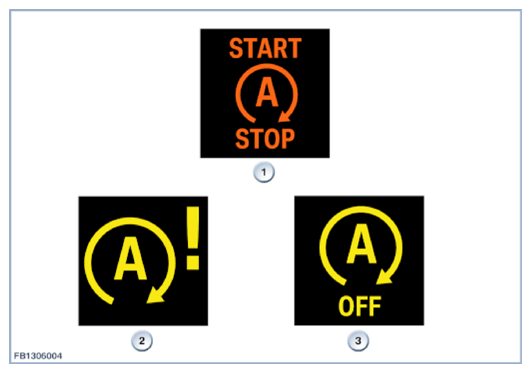

Fig 2: Display - MSA Button Screen (Start-Stop Function Failure)

Courtesy of BMW OF NORTH AMERICA, INC.

Item	Explanation
1	ID 397: Automatic engine start-stop function failure!
2	ID 450: Automatic engine start-stop function deactivated!
3	Safety function. No automatic engine start.

Condition	Deactivation, a fault is present	Temporary deactivation with no display	Temporary deactivation with display
	CC-Message: ID 397		CC-Message: ID 450
MSA wiring malfunction	x
Neutral sensor error	x
Error, neutral position not yet initialized	x
Brake vacuum sensor error	x
Neutral sensor signal plausibility error	x
Implausible clutch switch signal	x
CAN bus error (relevant to MSA)	x
RF remote control not within range or in storage compartment			x
Driver absent or bonnet open			x
Production mode active		x
Transport mode active		x
Workshop mode active		x
Diagnostic system has temporarily deactivated MSA		x
Engine malfunction of serious relevance to MSA			x
Start process aborted by CAS (starter protection)			x
Tow-starting detected		x
MSA deactivated at MSA button		x
Engine not yet started following ignition ON		x

A Check Control message appears when a system error (with or without a required component replacement) is active or the MSA is deactivated.

The corresponding readouts can be accessed with the "MSA system check" and "AV memory readout" service functions. Other service functions support supplementary plausibility checks and test functionality (exception: neutral sensor learn/write).
