FM antennas and AM antennas
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
As series standard, the E70 is equipped with antenna diversity for FM. The analog radio antennas are connected to antenna diversity.
The following radio antennas are installed:
- AM antenna
- FM1 antenna
- FM2 antenna
- FM3 antenna
To enhance the electromagnetic compatibility (EMC), various measures have been implemented using additional earth connections.

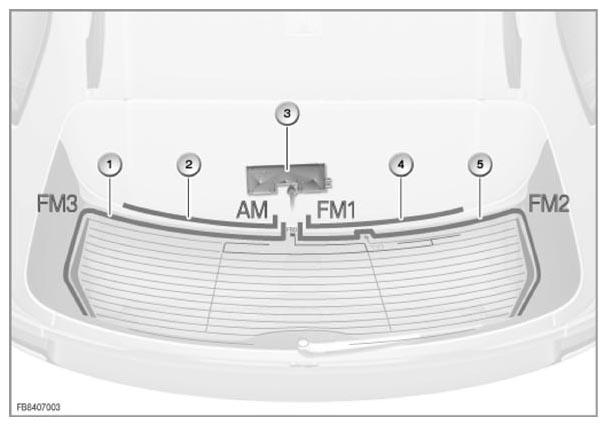

| Index | Explanation |
|---|---|
| 1 | FM3 antenna |
| 2 | AM antenna |
| 3 | Antenna diversity |
| 4 | FM1 antenna |
| 5 | FM2 antenna |
