TRSVC: Control unit for all-round vision camera
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
The all-round vision camera control unit is located in the rear left of the luggage compartment. The light points, light colors and light intensities picked up by the video camera are evaluated by the TRSVC control unit. The bumper camera is connected to the all-round vision camera control unit by a 5-pin line. The all-round vision camera control unit is connected to the body CAN. The TRSVC control unit is supplied by the rear power distribution box via terminal 15N.

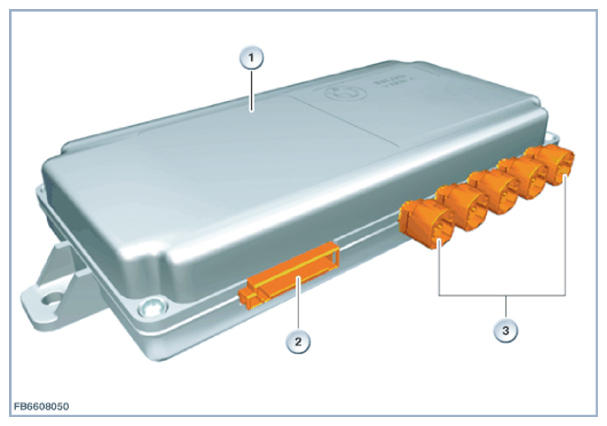

| Index | Explanation |
|---|---|
| 1 | All-round vision camera control unit (TRSVC) |
| 2 | Plug connections for main wiring harness |
| 3 | Plug connections for cameras (maximum equipment) |
