Bumper camera
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
The bumper cameras enable an early view of crossing traffic at exits and junctions with a poor viewing angle. Road users concealed by objects on the sides are recognized relatively late from the driver's seat.
The detection range of the cameras is a maximum of 100 meters.
The two bumper cameras and the rear view camera makes their signals available to the TRSVC control unit via an LVDS data line.

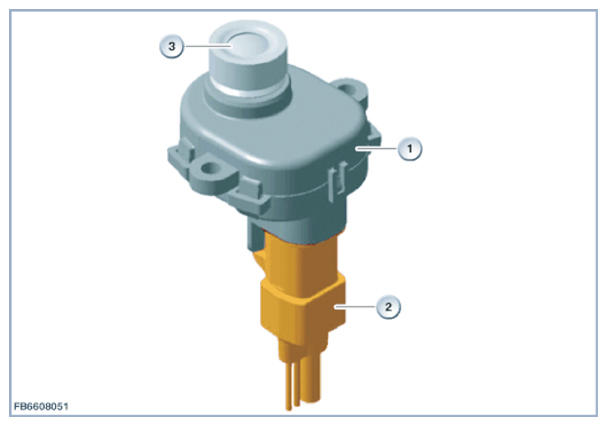

| Index | Explanation |
|---|---|
| 1 | Bumper camera |
| 2 | 4-pin plug connection |
| 3 | Lens |
The two bumper camera are located on the left and right sides in the bumper. The bumper cameras are connected to the all-round vision camera control unit by the following lines:
- local interconnect network bus
- LVDS data line
NOTE:
Follow the instructions in the operating instructions!
Dirt can impair the image quality of the bumper cameras. To flush the lenses, comply with the Vehicle Owner's Handbook.
