Top HiFi amplifier and High End HiFi amplifier
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
The digital Top HiFi amplifier (AMPT) and the High End HiFi amplifier (AMPT) convert the digital audio signals transmitted from the headunit to the MOST bus into analogue audio signals. The Top HiFi amplifier and/or High End hi-fi amplifier (AMPT) also receive the analogue signals from the Active Sound Design (ASD). The combined and amplified audio signals are transmitted to the relevant speakers.

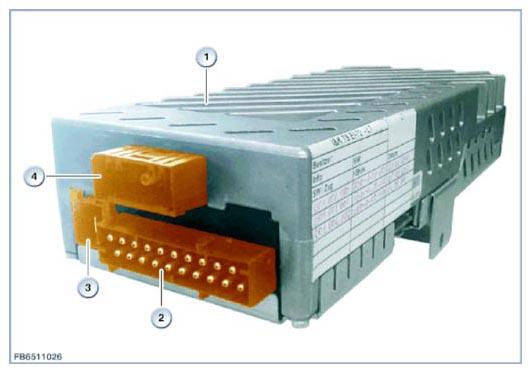

| Item | Explanation |
|---|---|
| 1 | Top HiFi amplifier (AMPT) and/or High End hi-fi amplifier (AMPT) |
| 2 | 20-pin plug connection (speaker output) |
| 3 | 2-pin plug connection (voltage supply) |
| 4 | 2-pin plug connection for MOST and 12-pin for Active Sound Design (ASD) |
