System overview
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

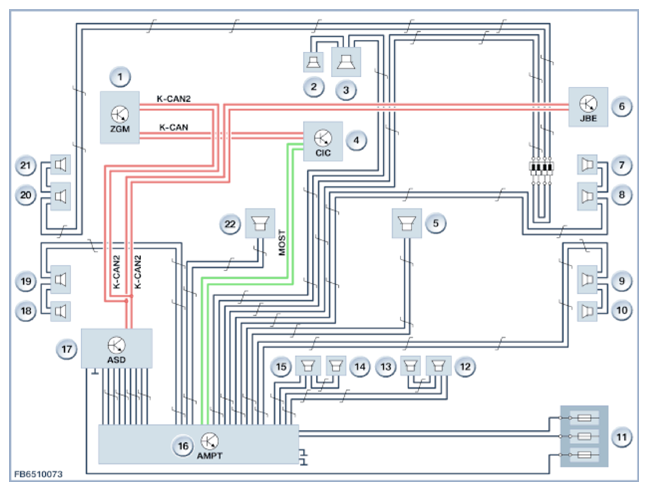

The following graphic shows the system overview of the Active Sound Design (ASD) for the Top HiFi system in F10, for example.
| Item | Explanation |
|---|---|
| 1 | Central gateway module (ZGM) |
| 2 | Tweeter, front center |
| 3 | Mid-range speaker, front center |
| 4 | Headunit |
| 5 | Bass speaker, front right |
| 6 | Junction Box Electronics (JBE) |
| 7 | Right front door tweeter |
| 8 | Door mid-range speaker, front right |
| 9 | Door mid-range speaker, rear right |
| 10 | Door tweeter, rear right |
| 11 | Power distribution box, rear |
| 12 | Mid-range speaker, storage shelf, right |
| 13 | Tweeter, storage shelf, right |
| 14 | Tweeter, storage shelf, left |
| 15 | Mid-range speaker, storage shelf, left |
| 16 | Top HiFi amplifier (AMPT) or High End hi-fi amplifier (AMPT) |
| 17 | Active Sound Design (ASD) |
| 18 | Tweeter, rear left door |
| 19 | Mid-range speaker, rear left door |
| 20 | Mid-range speaker, front left door |
| 21 | Tweeter, front left door |
| 22 | Bass speaker, front left |
