62 30 010 Removing And Installing/Renewing Head-Up Display

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

IMPORTANT: Comply with notes and instructions on HANDLING OPTICAL FIBRES .
Risk of damage!
Do not scratch lens of head-up display.

Necessary preliminary tasks:

Remove INSTRUMENT PANEL TRIM .

Remove WINDSCREEN AIR DUCT .

Remove sound insulation (1) from head-up display.

Disconnect plug connection (2).

Release screws (3). Tightening torque: 62 30 2AZ .

Carefully feed out head-up display towards top.

Installation:

Clean lens of head-up display.

Adjust HEAD-UP DISPLAY .

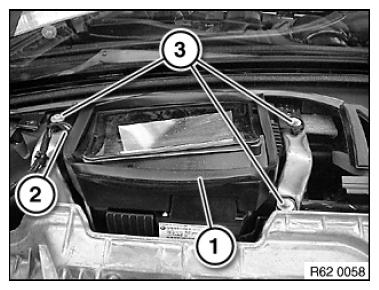

Fig 1: Plug Connection, Sound Insulation And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
