62 30 005 Removing And Installing/Replacing Trim For Head-Up Display

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

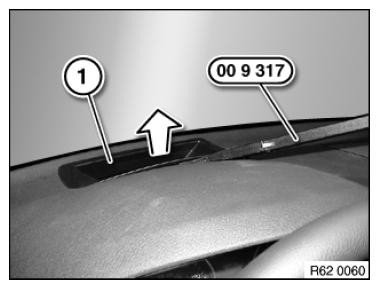

Use special tool 00 9 317 to lift the trim for the Head-Up Display (1) out of the dashboard in the direction of the arrow.

Fig 1: Lifting Trim For Heads-Up Display Using Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure retaining clamps (1) are correctly seated on trim for Head-Up Display.

Make sure trim for Head-Up Display is correctly engaged on dashboard.

Fig 2: Retaining Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
