33 11 021 Replacing shaft seal for drive flange on rear differential (inserted propeller shaft)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Use only approved transmission oils.
Failure to comply with this instruction will result in serious damage to the rear axle final drive!

Necessary preliminary work:

Remove propeller shaft

Remove retaining clip (1) and insert nut (2) with diaphragm seal.

Fig 1: Identifying Retaining Clip And Nut

G04794569

Courtesy of BMW OF NORTH AMERICA, INC.

Mark position of flange nut (1) to bevel pinion (2).

Fig 2: Identifying Flange Nut And Bevel Pinion

G04794570

Courtesy of BMW OF NORTH AMERICA, INC.

Release flange nut clockwise with special tools 33 5 050 and 33 5 070 by gripping the bevel pinion with special tools 33 5 060 and 33 5 070 .

Fig 3: Releasing Flange Nut

G06850936

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out radial shaft seal with special tool 00 5 010 .

Fig 4: Pulling Out Radial Shaft Seal

G04754034

Courtesy of BMW OF NORTH AMERICA, INC.

Coat sealing lips of new radial shaft seal and sealing surface of bevel pinion with final drive oil.

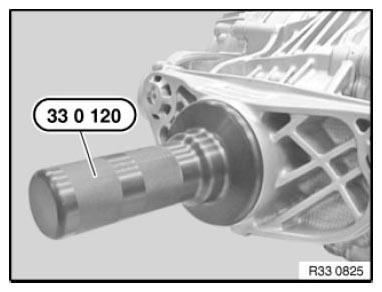

Drive in radial shaft seal with special tool 33 0 120.

Fig 5: Removing Radial Shaft Seal

G08559126

Courtesy of BMW OF NORTH AMERICA, INC.

Clean bevel pinion thoroughly to remove remnants of screw locking agent.

Fig 6: Identifying Bevel Pinion

G04794574

Courtesy of BMW OF NORTH AMERICA, INC.

Check dust plate for damage, replace if necessary.

IMPORTANT: Clean flange nut thoroughly to remove remnants of grease and screw locking agent.
Pack collar insert (1) of flange nut with grease.
Apply a thin coating of grease to shaded area (2) of flange nut.
Coat at least four thread turns of flange nut with "DREI BOND adhesive type 1385".

Fig 7: Identifying Grease Applying Areas On Flange Nut (Shaded Area)

G04794575

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: In order to avoid damaging the rear axle final drive, do not under any circumstances tighten down the flange nut (1) beyond the marker point of the bevel pinion (2).

Fig 8: Identifying Flange Nut And Bevel Pinion

G04794570

Courtesy of BMW OF NORTH AMERICA, INC.

Place insert nut (2) with diaphragm seal in flange nut.

Install retaining clip (1).

Fig 9: Identifying Retaining Clip And Nut

G04794569

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Correct rear differential fluid level . See 00 11... CHECKING/TOPPING UP OIL LEVEL IN REAR DIFFERENTIAL , 00 11 259 CHANGING OIL IN REAR AXLE FINAL DRIVE (DYNAMIC PERFORMANCE CONTROL) AND DISPOSING OF USED OIL or 00 11... CHECKING/TOPPING UP OIL LEVEL IN REAR AXLE FINAL DRIVE (DYNAMIC PERFORMANCE CONTROL)
