65 77... Overview of sensors for airbag system
65 77... Overview of sensors for airbag system
WARNING:
This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

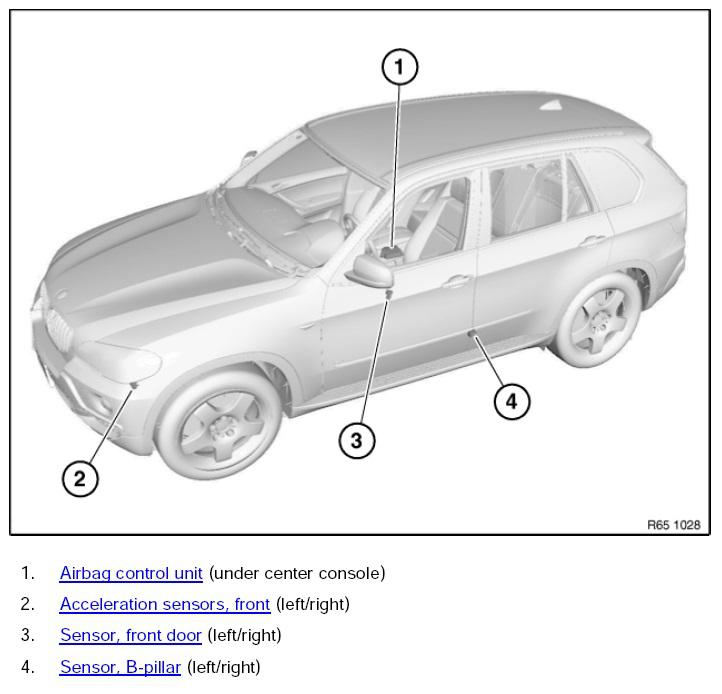

Fig 1: Overview Of Sensors For Airbag System
Courtesy of BMW OF NORTH AMERICA, INC.
