41 11 150 Cover For Frame Side Member (Part Replacement Between A And B Pillar)
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Read contents of SAFETY INFORMATION and BODY, GENERAL .
Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .
Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.
Use only an approved SPOT-WELDING APPARATUS for repairs!
The following new parts are required:

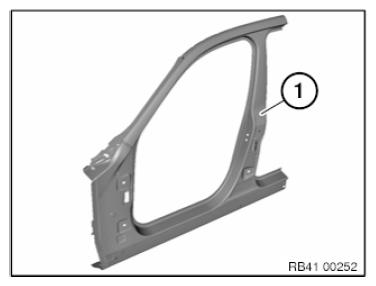

- (1) B-pillar with entrance
- Shaped part entrance, outer
Mark severance cuts in accordance with specified dimensions and cut.
IMPORTANT:
Cut outer panel only for following severance cuts.
Dimension "a" = approx. 50 mm behind 25 mm dia. hole.
Dimension "b" = approx. 250 mm before hole dia. 20 mm.
Open welded connections in areas (1) and (2).
Open bonded connections in areas (3). Open one welding spot in each case.
Installation note:
Mark new part in accordance with severance cuts on vehicle and cut.
Apply window glass adhesive to cavity sealing (4). See INSTALLING CAVITY SEALING (EXPANDED) and INSTALLING CAVITY SEALING (NOT EXPANDED) .
Apply ADHESIVE in areas (3). Welding spots omitted in areas (3).
Weld in REINFORCEMENT PLATES at all severance cuts.
BOND and rivet new part in area (2).
Use Hemlock 813 blind rivet (sourcing reference: BMW Parts Department picture board - Aluminium and steel/bonding and welding).
Double the number of rivets across from welding spots in the area (2).
Dimension "a" = approx. 50 mm behind 25 mm dia. hole.
Dimension "b" = approx. 250 mm before hole dia. 20 mm.
Open welded connections in areas (1) and (2).
Open bonded connections in areas (3). Open one welding spot in each case.
Installation note:
Mark new part in accordance with severance cuts on vehicle and cut.
Apply window glass adhesive to cavity sealing (4). See INSTALLING CAVITY SEALING (EXPANDED) and INSTALLING CAVITY SEALING (NOT EXPANDED) .
Apply ADHESIVE in areas (3). Welding spots omitted in areas (3).
Weld in REINFORCEMENT PLATES at all severance cuts.
BOND and rivet new part in area (2).
Use Hemlock 813 blind rivet (sourcing reference: BMW Parts Department picture board - Aluminium and steel/bonding and welding).
Double the number of rivets across from welding spots in the area (2).
