41 35... Removing And Installing Left Front Side Wall (As Of 03/2010)

Observe 41 00... BODY GAP DIMENSIONS .

Necessary preliminary work:

• Remove FRONT BUMPER PANEL
• Remove WHEEL ARCH COVER AT FRONT
• Remove TRIM PANEL FOR ENTRANCE
• Remove COVER ON WHEEL ARCH
• Remove gutter strip

Release screws.

Tightening torque 41 35 6AZ .

Tightening torque 41 35 7AZ .

Tightening torque 41 35 8AZ .

Tightening torque 41 35 9AZ .

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

• Microencapsulated screws (Loctite) must be replaced and may not  be reused
• Screw connection must be completed within 20 minutes. (after which hardening begins)
• Microencapsulated screws must not be retightened.
• Thread of nut must be cleaned beforehand in event of repeated use.

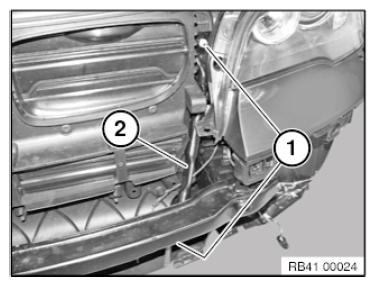

Release screws (1) and remove strut (2).

Tightening torque 51 11 5AZ .

Fig 2: Identifying Strut And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fig 3: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

For vehicles with auxiliary oil cooler only:

Lever out retaining clip (1) at bottom and detach towards rear.

Remove oil cooler and tie back.

Fig 4: Identifying Oil Cooler Retaining Clip

Courtesy of BMW OF NORTH AMERICA, INC.

For vehicles with auxiliary oil cooler only:

Release screw (1).

Tightening torque 17 22 5AZ .

Fig 5: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

For vehicles with auxiliary oil cooler only:

Release screws (2) and remove holding frame (1) for oil cooler.

Tightening torque 17 22 5AZ .

Fig 6: Identifying Oil Cooler Holding Frame And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

View of wheel arch from below:

Unlock connector (1) for headlight (2) and disconnect.

Release screws (3).

Tightening torque 41 35 6AZ .

Fig 7: Identifying Headlight Connector And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out clamp (1) in direction of arrow.

Take off side wall.

Fig 8: Pulling Out Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Following parts must not be damaged or missing:

• Spacer buffers (1)
  Fig 9: Identifying Spacer Buffers

  Courtesy of BMW OF NORTH AMERICA, INC.
