41 21 510 Replacing Front Left Door Post (Front Side Panel Removed)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of SAFETY INFORMATION and BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only an approved SPOT-WELDING APPARATUS for repairs!

Place vehicle on straightening bench.

The following new parts are required:

(1) A-pillar, outer
(2) Carrier support, outer wheel arch section
(3) Reinforcement plate, sill

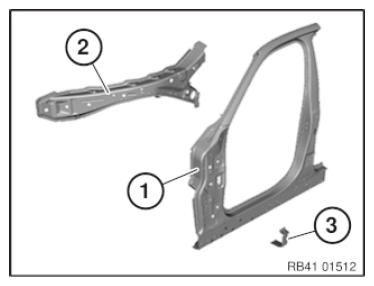

Fig 1: Identifying Outer A-Pillar, Out Wheel Arch Section Carrier Support, And Sill Reinforcement Plate
Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Fig 2: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut in accordance with measurement "a" and cut carrier support.

measurement "a" = approx. 50 mm in front of bore dia. 20 mm.

Open welded connections in area (1).

Installation note:

Weld in REINFORCEMENT PLATE at severance cut.

Fig 3: Identifying Cutting Dimension And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified dimensions and cut.

IMPORTANT: Cut outer panel only for following severance cuts.
measurement "a" = 160 mm from roof edge.
measurement "b" = 80 mm below severance cut "a".
measurement "c" = approx. 150 mm before hole dia. 25 mm.
Open welded connections in areas (1) and (2).
Installation note:
Sheet panel (4) is needed again to seal cowl panel.
Apply window glass adhesive to cavity sealings (3). See INSTALLING CAVITY SEALING (EXPANDED) and INSTALLING CAVITY SEALING (NOT EXPANDED) .
BOND and rivet new part in area (2).
Use Hemlock 813 blind rivet (sourcing reference: BMW Parts Department picture board - Aluminium and steel/bonding and welding).
Double the number of rivets across from welding spots in the area (2).

Fig 4: Identifying Cutting Dimensions, Cavity Sealings, Welded Connection Areas, And Sheet Panel

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: For the following severance cut, do not damage the slide/tilt sunroof water drain hose.

Mark severance cut (1) in accordance with specified dimension and cut.

measurement "a" = approx. 200 mm from roof edge.

Fig 5: Identifying Cutting Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Open bonded connection in areas (1).

Open welded connections in areas (2).

Feed out water drain hose for slide/tilt sunroof (3).

Installation note:

Do not weld new part in areas (2).

Make sure water drain hose is correctly fitted.

Fig 6: Identifying Welded Connection Areas, Bonded Connection Areas, And Water Drain Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark new part in accordance with severance cuts above and cut.

Installation note:

Adjust new part to fit with set of attachments or universal mount.

Weld in REINFORCING PANELS at all severance cuts.

Apply ADHESIVE in areas (1).

Fig 7: Identifying Adhesive Application Areas

Courtesy of BMW OF NORTH AMERICA, INC.
