41 12 557 Replacing Middle Luggage Compartment Floor (Tail Panel Has Been Removed)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of SAFETY INFORMATION and BODY, GENERAL .

For stripping operations, refer to 41 12 557 STRIPPING OPERATIONS .

Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .

Use only approved SPOT-WELDING APPARATUS for repairs.

Procedure OBSERVE repair stage 2!

The following new body parts are required:

(1) Luggage compartment floor

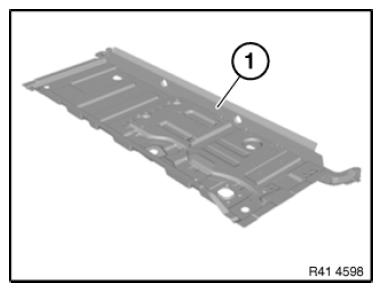

Fig 1: Identifying Luggage Compartment Floor
Courtesy of BMW OF NORTH AMERICA, INC.

Removal

View from below:

LOOSEN spot-welded adhesive joints in area (1).

Open welded connections in areas (2).

Fig 2: Identifying Plug-Welding Areas

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Fit luggage compartment floor from below and adjust in combination with tail panel.

Prepare new part for plug-welding in areas (1) and (2). Note double number of welding spots in area (1).

Fig 3: Identifying Plug-Welding Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Install new part and weld.
