27 21 030 Replacing Radial Shaft Seal For Output To The Front Axle (ATC 45L)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

23 0 490
27 1 470
2 318 114

IMPORTANT: After completion of the repair work, CHECK GEARBOX OIL LEVEL .
For these transfer boxes, use approved transmission oil only.

Necessary preliminary tasks:

Remove front PROPELLER SHAFT .

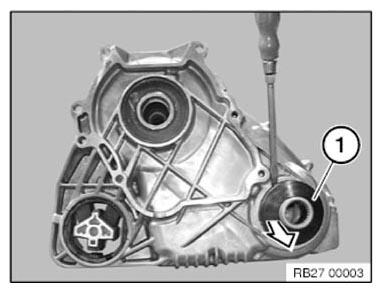

Remove protective cap (1) with a screwdriver.

Fig 1: Removing Protective Cap Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

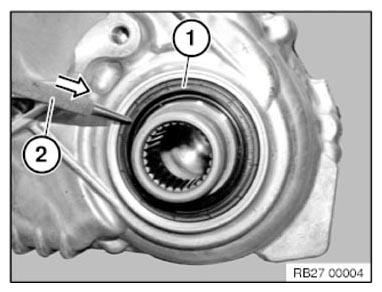

Drive a hole into radial shaft seal (1) using a center punch (2).

IMPORTANT: Do not use a drill as drillings may result in transmission malfunction.

Fig 2: Driving Hole Into Radial Shaft Seal Using Center Punch

Courtesy of BMW OF NORTH AMERICA, INC.

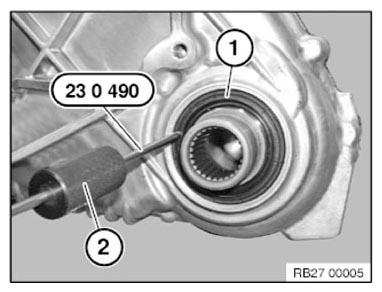

Screw in special tool 23 0 490 .

Drive out radial shaft seal (1) with impact weight (2).

Fig 3: Driving Out Radial Shaft Seal With Impact Weight

Courtesy of BMW OF NORTH AMERICA, INC.

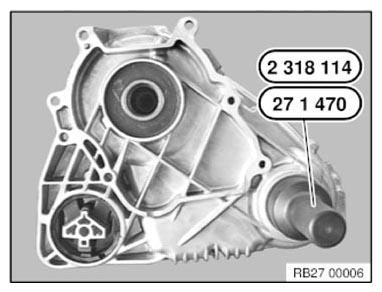

Drive in radial shaft seal with special tool 2 318 114.

Fig 4: Driving Radial Shaft Seal With Special Tool 2 318 114

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.

Check oil level.

Check transmission for leaks.
