27 00 270 Change Transfer Box Oil (ATC 45L)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 080

IMPORTANT: Use only the approved transmission oil in the transfer box .
Failure to comply with this requirement will result in serious damage to the transfer box!

NOTE: Only change oil when transfer box is at normal operating temperature.

Necessary preliminary tasks:

Remove TRANSMISSION CROSS-MEMBER .

Undo oil filler plug (1).

Tightening torque: 27 10 2AZ .

Installation note:

Renew oil filler plug with O-ring.

Fig 1: Oil Filler Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Place oil collecting apparatus underneath.

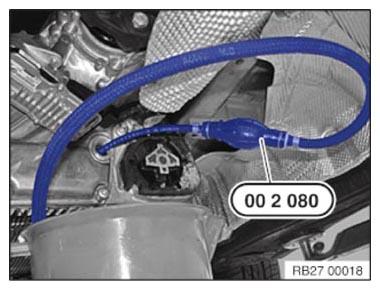

Use special tool 00 2 080 to draw off and dispose of transmission oil.

drawn off oil volume ≥ 500 ml.
Observe country-specific waste disposal regulations

Fig 2: Special Tool 00 2 080
Courtesy of BMW OF NORTH AMERICA, INC.

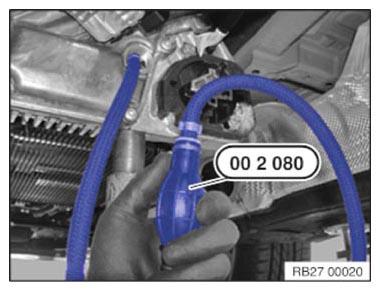

Use special tool 00 2 080 to top the transmission oil up to the lower edge of the filler screw opening.

Fig 3: Filling To Lower Edge Of Filler Screw Opening

Courtesy of BMW OF NORTH AMERICA, INC.
