63 12 017 Removing and installing/replacing right headlight (adaptive headlight)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore, before removing, disconnect all components from the voltage supply (lighting system and ignition off).
Work on the entire xenon lighting system (control unit, ignition unit with bulb) may only be carried out by qualified personnel.
Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

Remove FRONT SECTION OF FRONT WHEEL ARCH COVER
Remove FRONT BUMPER PANEL

IMPORTANT: Risk of damage
Carry out the following operations with care so as to avoid damaging the side panel, headlight, wiring harness and washer fluid reservoir for window washer system.

Version with SCR system only:

Unclip filling line (1) and ventilation line (2) from bracket (3).

If necessary, remove bracket (3).

Installation note:

Ensure that bracket (3), filling line (1) and ventilation line (2) are correctly positioned.

Fig 1: Identifying Filler Line, Ventilation Line, And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (2) from relay (1).

Release nuts (3) from relay (4).

Remove relay holder (4).

Fig 2: Identifying Relay, Holder And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

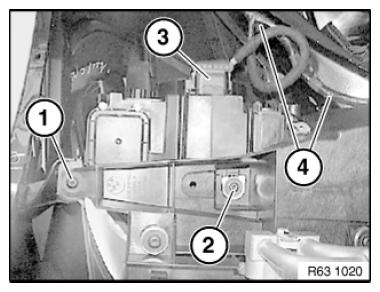

Release screw (1) from front side panel.

Release screw (2) from headlight.

Tightening torque 63 12 2AZ .

Disconnect plug connection (3).

Unclip wiring harness (4).

Fig 3: Identifying Wiring Harness, Screws, And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1). Tightening torque 63 12 1AZ .

Carefully pull headlight back slightly in direction of arrow.

Fig 4: Removing Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: An assistant is needed for this operation.

IMPORTANT: Risk of damage
Fully mask off front side panel in marked area (A) and headlight lens

Release nuts (3) from diagonal strut (4).

Release screws (2) from front side panel.

Carefully lift side wall upward/outward with the help of an assistant and hold it there.

Fig 5: Identifying Diagonal Strut, Masking Area, Nuts, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully feed out headlight (1) in direction of arrow.

Fig 6: Removing Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The side wall must be fastened before adjusting the headlight
Adjust headlight in accordance with 41 00... BODY GAP DIMENSIONS by means of adjusting elements (1) to body
Adjust HEADLIGHT

Fig 7: Identifying Knurled Screws
Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove IGNITION UNIT/BULB FOR XENON HEADLIGHT
Remove CONTROL UNIT FOR XENON HEADLIGHTS
Remove DRIVE MOTOR FOR ADAPTIVE HEADLIGHT
If necessary, remove bulbs. See BULB FOR XENON HEADLIGHT (WITH IGNITION UNIT) , BULB FOR FRONT TURN INDICATOR , and BULB FOR SIDE LIGHTS (XENON HEADLIGHT) .
