63 12 015 Removing and installing or replacing left headlight (adaptive headlight)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore, before removing, disconnect all components from the power supply (lighting system and ignition off).
Work on the entire xenon lighting system (control unit, ignition unit with bulb) may only be carried out by specialist personnel.
Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

Remove FRONT WHEEL ARCH COVER FRONT SECTION

Left headlight N62:

Release ENGINE OIL COOLER

Release screw (1) on front side panel.

Release screw (2) on headlight.

Tightening torque 63 12 2AZ .

Disconnect plug connection (3).

Unclip wiring harness (4).

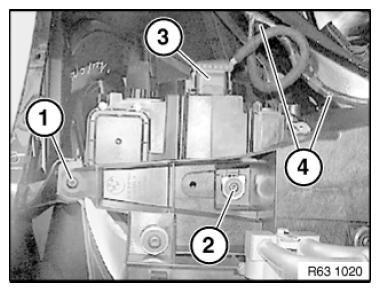

Fig 1: Identifying Wiring Harness, Screws, And Plug Connection

G09963938

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Tape off front side panel in area (1).

Fig 2: Identifying Masking Area

G08530722

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Carry out the following work step carefully in order to avoid damaging the side panel, headlight and wiring harness.

Release screws (1). Tightening torque 63 12 1AZ .

Press side panel (2) outwards slightly and feed out headlight towards rear.

Fig 3: Removing Headlight

G04792502

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

ADJUST headlight to body by way of knurled screws (1)
Adjust HEADLIGHTS

Fig 4: Identifying Knurled Screws
Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove IGNITION UNIT/BULB FOR XENON HEADLIGHT
Remove CONTROL UNIT FOR XENON HEADLIGHTS
Remove DRIVE UNIT FOR ADAPTIVE HEADLIGHT
If necessary, remove bulbs. See BULB FOR XENON HEADLIGHT (WITH IGNITION UNIT) , BULB FOR FRONT TURN INDICATOR , and BULB FOR SIDE LIGHTS (XENON HEADLIGHT) .
