63 11 855 Replacing right LED fan (inner)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

2 296 785

Necessary preliminary tasks:

Remove headlight with LED technology

WARNING: Danger of injury from cutting tool; wear gloves that provide protection against cutting.

Open repair cap as shown using suitable tool (e. g. cutter knife).

Installation note:

Repair opening is closed again using the plug contained in the repair kit.

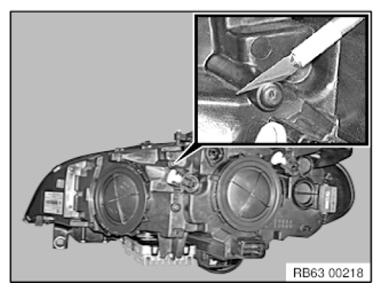

Fig 1: Opening Repair Cap Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Loosen screws (2) using special tools 2 296 785 .

Tightening torque 63 11 5AZ .

Take fan (3) out of headlight.

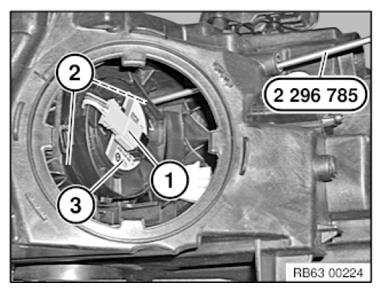

Fig 2: Identifying Fan, Plug Connection, Screws, And Special Tool
