22 11 110 Replacing left engine support arm (M57T2)
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Secure ENGINE in installation position
- Remove REINFORCEMENT PLATE
- Remove heat shields.
- Release grounding strap from engine support arm.

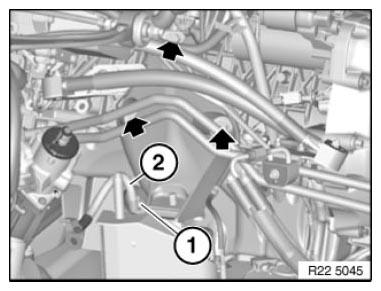

Unscrew nut (1).
Release grounding strap (2) from engine support arm.
Release screws and engine support arm.
Tightening torque: 22 11 3AZ .
