17 21 500 Flushing transmission oil cooler with lines (automatic transmission) (GA6HP19Z, GA6HP26Z, GA6HP32Z)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: Carry out the work steps listed when:
Installing a new or replacement transmission.

Procedure:

Automatic transmission removed.

Connect appropriate adapters (see description below) to oil lines exiting from automatic transmission.

Connect connecting line 17 2 019 from the oil collection unit with the quick-release coupling.

Connect drain line 17 2 018 using quick-release coupling.

Hold and direct open end of drain line into a suitable drip tray.

Using oil collection unit, flush approx. 1 litre of transmission fluid (See AUTOMATIC TRANSMISSION -- OPERATING FLUIDS ) through oil lines and transmission oil cooler.

Reposition quick-release couplings.

Flush oil lines/transmission oil cooler in opposite direction with approx. 1 litre of transmission fluid (See AUTOMATIC TRANSMISSION -- OPERATING FLUIDS ).

Disconnect quick-release couplings.

Remove adapter.

NOTE: Dispose of flushing oil correctly.
Do not reuse under any circumstances.

Press hydraulic lines (1) into adapters (2).

Slide clamping bar (3) into guides and secure with screw (4).

Fig 1: Pressing Hydraulic Lines Into Adapters

Courtesy of BMW OF NORTH AMERICA, INC.

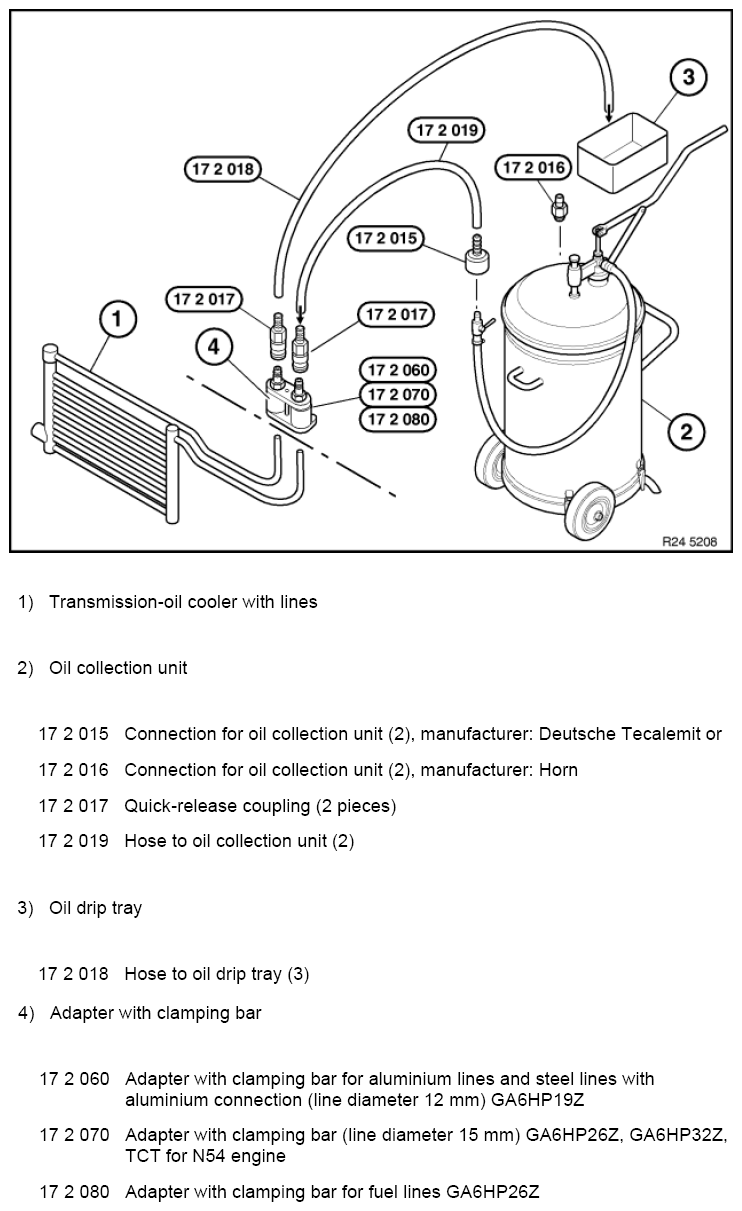

Arrangement of flushing apparatus for transmissions GA6HP19Z, GA6HP26Z, GA6HP32Z

Fig 2: Identifying Arrangement Of Flushing Apparatus For Transmissions

Courtesy of BMW OF NORTH AMERICA, INC.
