31 60 535 Replacing Two Gaiters On Output Shaft(s) (Output Shaft(s) Removed)

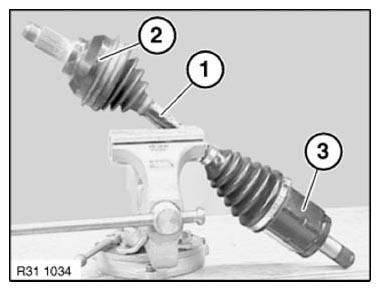

Grip output shaft (1) in vice with aluminum clamping jaws.

Fig 1: Output Shaft And Joints

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing gaiter of wheel-side joint:

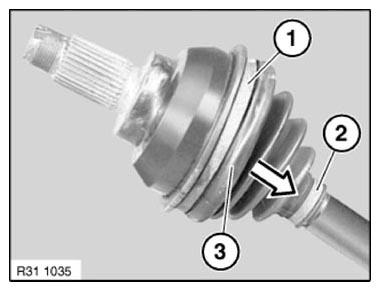

Release LOW PROFILE CLIP  (1) and clip (2).

Pull back rubber gaiter (3).

Installation note:

Feed gaiter (3) into groove of joint.

Fig 2: Pulling Rubber Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Press off joint (1) via contact pressure of circlip on shaft (2).

Installation note:

Push on joint until circlip can be heard to snap into place.

Fig 3: Circlip On Shaft And Joint

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out circlip (1).

Installation note:

Replace circlip (1).

Fig 4: Circlip

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off gaiter (1) over shaft (2).

Carefully clean all components with a cloth.

Fig 5: Pulling Off Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing gaiter of transmission-side joint:

Release band clamps (1, 2).

Pull back rubber gaiter (3).

Detach joint housing (4).

Installation note:

Feed gaiter (3) into groove of joint housing (4).

Align band clamp (1) so that hook fastener is as at flat end of joint housing (4).

Fig 6: Aligning Band Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Remove circlip (1).

Installation note:

Replace circlip (1).

Detach tripod element (2) from shaft (3).

Pull off gaiter over shaft (3).

Carefully clean all components with a cloth.

Fig 7: Circlip, Tripod Element And Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Flat side (2) of trent (1) must point to circlip.

Fig 8: Flat Side Of Tripod Element

Courtesy of BMW OF NORTH AMERICA, INC.
