16 19 030 Removing and installing/replacing filler pipe with filler neck for passive reservoir
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Ensure adequate ventilation in the workbay!
Avoid skin contact (wear gloves)!
Avoid eye contact (safety goggles)!
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.
Avoid skin contact (wear gloves)!
Avoid eye contact (safety goggles)!
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.
IMPORTANT:
Maintain conditions of absolute cleanliness.
Connections and covers of lines carrying urea/water mixture must be cleaned thoroughly with water after each removal or before each installation!
Thoroughly clean the working area with water after repair work.
Use fluff-free cloths for cleaning .
Close connections and lines!
Thoroughly clean special tool with water after each use.
Connections and covers of lines carrying urea/water mixture must be cleaned thoroughly with water after each removal or before each installation!
Thoroughly clean the working area with water after repair work.
Use fluff-free cloths for cleaning .
Close connections and lines!
Thoroughly clean special tool with water after each use.
Necessary preliminary work:
- Draw off UREA/WATER MIXTURE from passive reservoir
- Remove INTAKE FILTER HOUSING
- Remove rear UNDERBODY PROTECTION
- Remove LEFT COVER

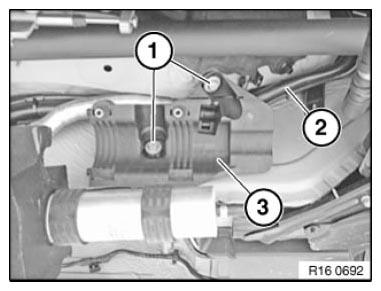

Release screws (1).
IMPORTANT:
Do not allow fuel filter to hang from lines.
Take off holder (3).
Remove fuel filter (2).

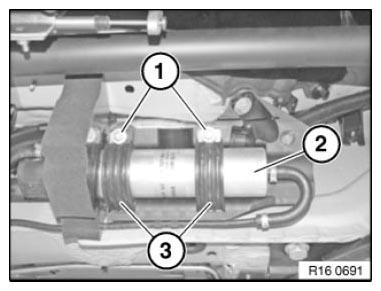

Release screws (1).
Remove fuel filter holder (3) and unclip lines (2).
IMPORTANT:
Urea/water mixture can escape!
Have a drip tray ready.
Have a drip tray ready.
Detach ventilation line (1).
Installation note:
Check by pulling correct engagement of ventilation line (1).
Release hose clamp (2) and detach filler hose.
Installation note:
Replace hose clamp.
Tightening torque: 16 19 9AZ .

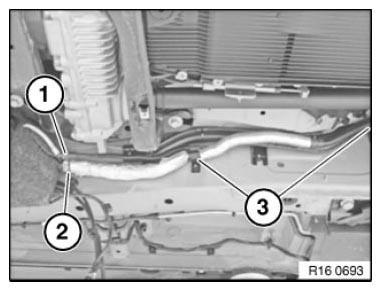

Unclip filler hose and ventilation line along their routing from holders (3).
IMPORTANT:
To prevent short-circuiting, cover battery positive lead (3).

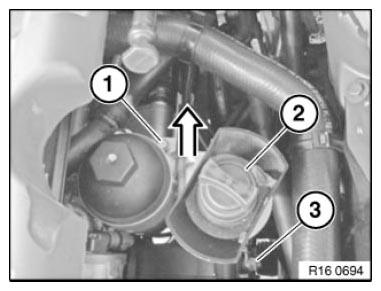

Release screw (1).
Slide filler pipe with filler connection (2) in direction of arrow from oil filter housing and feed out in upward direction.
