16 11... Replacing left or right clamping band for fuel tank

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove UNDERBODY PANELLING on left and right

IMPORTANT: Secure fuel tank against slipping and falling out.

Heavily support the fuel tank.

Fig 1: Securing Fuel Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove clamping band.

Installation:

Tightening torque: 16 11 2AZ .

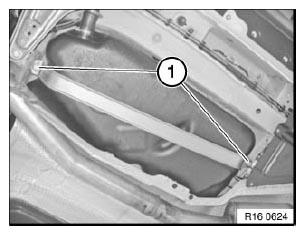

Fig 2: Identifying Fuel Tank Clamp Band Screw

Courtesy of BMW OF NORTH AMERICA, INC.
