16 11 071 Replacing rubber sleeve between fuel filler pipe and fuel tank

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Recycling

Fuel escapes when fuel lines are detached. Have a suitable collecting container ready.

Catch and dispose of escaping fuel.

Observe country-specific waste-disposal regulations.

IMPORTANT: Ensure adequate ventilation in the place of work!
Avoid skin contact (wear gloves)!
Before starting the engine for the first time:

Fill fuel tank with at least 5 liters of fuel.

Necessary preliminary tasks:

Draw off FUEL FROM FUEL TANK
Remove UNDERBODY PANELLING on right
Remove rear right WHEEL ARCH TRIM

Unclip line holder (1).

Slacken nut (2).

Installation:

Check plastic nut (2), replace if necessary.

Tightening torque: 16 12 2AZ .

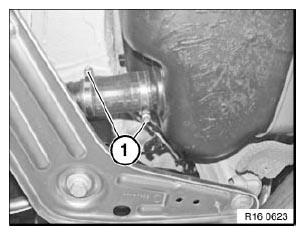

Fig 1: Identifying Fuel Tank Line Holder And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: There may be residual amounts of fuel in the tank!
Catch escaping fuel in a suitable container.

Loosen hose clamps (1).

Detach rubber sleeve first from fuel filler pipe and then from fuel tank.

Installation:

Tightening torque: 16 11 3AZ .
