16 14 500 Removing and installing or replacing control unit for electric fuel pump

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Raise luggage compartment floor trim

Release screws (1) and remove battery cover towards top.

Fig 1: Identifying Battery Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Release nuts (2) and remove control unit.

(Internal nut must only be slackened).

Installation:

Tightening torque: 16 14 1AZ .

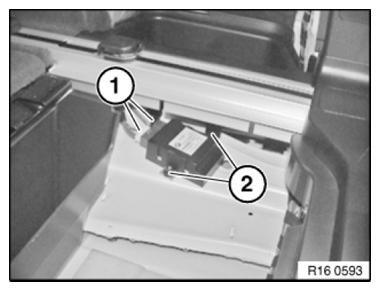

Fig 2: Identifying Plug Connections And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING
