11 51 000 Removing and installing/renewing coolant pump (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of scalding!
Only perform this work after engine has cooled down.

Recycling:

Catch and dispose of drained coolant in a suitable container.

Observe country-specific waste disposal regulations.

IMPORTANT: If a coolant pump which has already been operated is reused, it must be filled immediately after being removed with coolant (mixture ratio 1:1/water: coolant).

Installation note:

All screws, nuts, bolts and hose clamps removed during the repair must be replaced.
Retaining elements on chassis and suspension and steering parts must be replaced.

Necessary preliminary tasks:

Drain COOLANT
Remove DRIVE BELT

Unlock and detach plug connections (1).

Unlock and detach all coolant hoses on coolant pump.

Unfasten screws (2).

Tightening torque: 11 51 1AZ .

Lift out coolant pump with a swivelling movement.

Installation note:

Replace gasket.

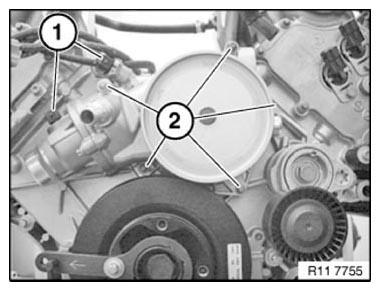

Fig 1: Identifying Coolant Pump Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Remove coolant thermostat from faulty coolant pump.

Convert coolant thermostat to new coolant pump.

Tightening torque: 11 53 1AZ .

Installation note:

Replace sealing ring.

Assemble engine.

Vent COOLING SYSTEM and check for water leaks.
