11 37 700 Replacing control unit (Valvetronic)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

FOLLOW INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Disconnect battery.

CAUTION: Follow INSTRUCTIONS FOR REMOVING AND INSTALLING ELECTRONIC CONTROL UNITS .

Observe following instructions before replacing control unit:

PROGRAM CONTROL UNIT .

Remove right fresh air duct.

Release screw and remove holder (1).

Release screws and remove cover (2) from control unit box.

NOTE: Release screws on seal (3) only when removing wiring harness.

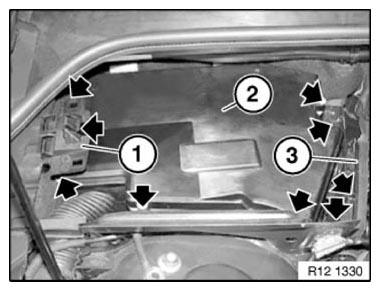

Fig 1: Locating Holder Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert tabs (1) in openings (2) and close cover.

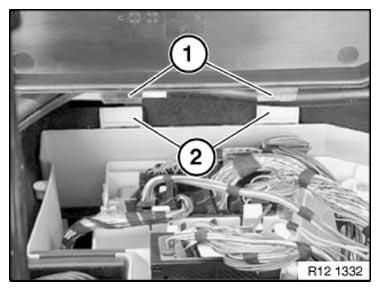

Fig 2: Identifying Tabs In Openings And Close Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and detach plug connections on Valvetronic control unit (1).

Remove Valvetronic control unit (1).

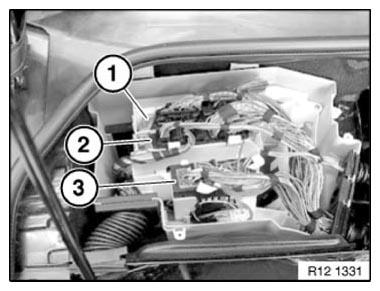

Fig 3: Identifying Valvetronic Control Unit Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit.

Check stored fault messages.

Rectify faults.

Then clear fault memory.
