11 66 000 Removing and installing/replacing vacuum pump (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Installation note:
Due to the risk of damage to the engine gaskets/seals and the lack of brake boosting, make sure before starting the engine that all the vacuum lines are connected.

Vacuum pump is fitted on cylinder head 1 to 4 at rear on intake camshaft.

Necessary preliminary tasks:

Press brake pedal several times in order to reduce vacuum pressure in brake booster.
Remove right CATALYTIC CONVERTER .
Remove right heat shield.
Detach vacuum line from vacuum pump.

Release screws (1).

Remove heat shield (2).

Remove vacuum hose.

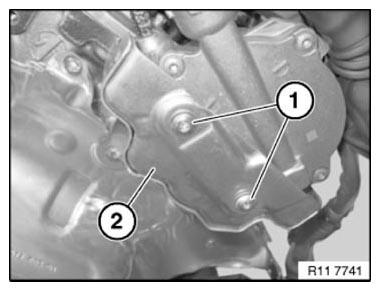

Fig 1: Identifying Heat Shield And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

NOTE: Bolts (1) are secured against falling out.

Release screw (2).

Remove vacuum pump (3).

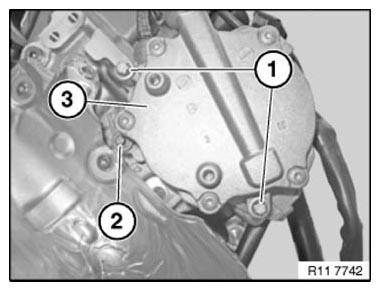

Fig 2: Identifying Vacuum Pump And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Drive (1) must be rotated into correct position prior to installation.

Installation note:

Replace sealing ring (2) and coat with grease to facilitate fitting.

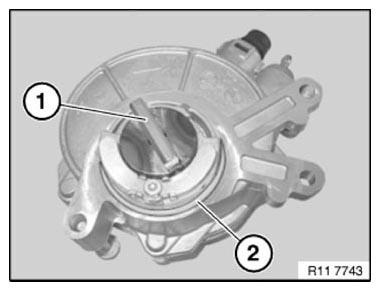

Fig 3: Identifying Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Align vacuum pump drive to groove (1) of intake camshaft.

Vacuum pump can best be installed when groove (1) is vertically aligned.

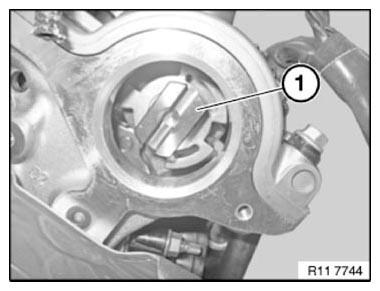

Fig 4: Identifying Vacuum Pump Drive To Groove

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of DME.

Check vacuum pump for leaks and correct operation.
