11 28 020 Replacing tensioning device for alternator drive belt (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 0 390

Necessary preliminary work:

Remove alternator DRIVE BELT

If necessary, remove special tool 11 0 390 .

Release screw (1).

Tightening torque: 11 28 1AZ .

Remove belt tensioner with idler pulley (2).

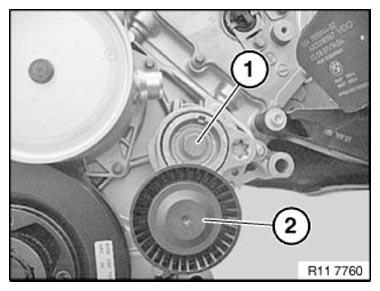

Fig 1: Identifying Belt Tensioner With Idler Pulley And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
