11 28 010 Removing and installing or replacing drive belt for alternator (M57T2-SCR)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove FAN COWL
Remove AIR CONDITIONING COMPRESSOR DRIVE BELT

Check drive belt for coolant and oil residues, replace if necessary.

IMPORTANT: The drive belt must be replaced if it is contaminated with hydraulic fluid.

NOTE: If the drive belt is to be reused, mark direction of travel and reinstall drive belt in same direction of travel.

IMPORTANT: Belt tensioner is under spring pressure.

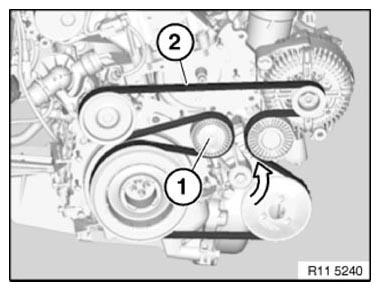

Relieve tension on belt tensioner (1) in direction of arrow.

Remove drive belt (2).

Fig 1: Removing Drive Belt

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
