17...... Removing and installing/replacing coolant pipe on cylinder head cover on left (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

See

WARNING: Danger of scalding!
Only perform these tasks on an engine that has cooled down.

Recycling:

Catch and dispose of drained coolant.

Observe country-specific waste-disposal regulations.

Necessary preliminary tasks:

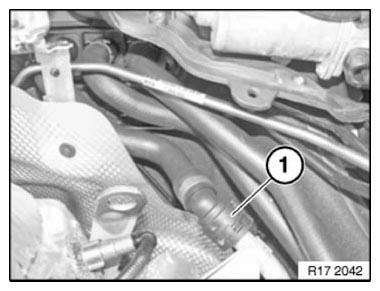

Unlock coolant hose (1) and detach from coolant pipe.

Fig 1: Identifying Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

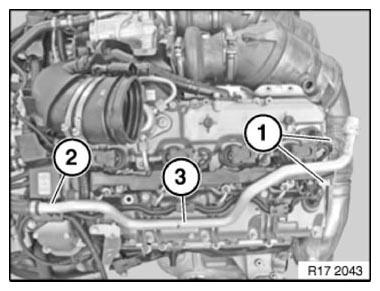

Release screws (1).

Tightening torque: 17 10 3AZ .

Unclip coolant pipe (2) from holder (3).

Fig 2: Identifying Coolant Pipe, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

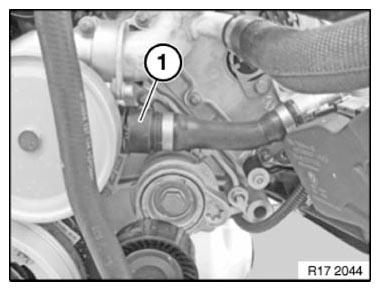

Unlock coolant hose (1) on coolant pump and detach.

Fig 3: Identifying Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

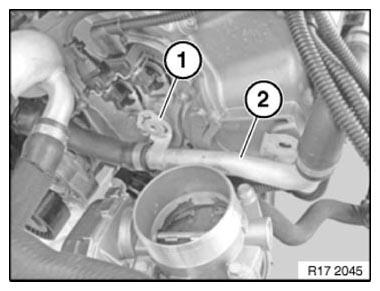

Pull off lug (1) on coolant pipe from crankcase.

Feed out coolant pipe (2) and remove.

Fig 4: Identifying Coolant Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check cooling system for leaks.
