11 33 050 Removing and installing/replacing all rocker arms (N55)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

IMPORTANT: Roller cam followers (1) on intake side are divided into bearing classes.
The tolerance classes are marked according to the graphic in numbers from 1 to 5.
Already used roller cam followers (1) may only be reused in the same position.

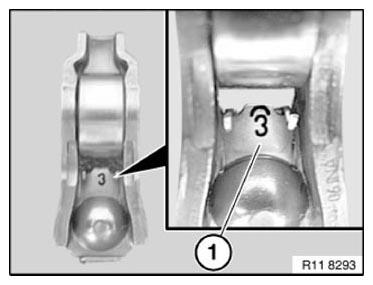

Fig 1: Identifying Roller Cam Followers

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen and remove roller cam followers (1) from hydraulic valve clearance compensating element.

Place all roller cam followers (1) in neat order on special tool 11 4 481 .

Installation note:

Prior to installation of intermediate levers, ensure proper installation position of roller cam followers (1).

Classification of roller cam follower intake.

Standard: Number 3. standard.

Number 2. slow idle.

Number 4. fast idle.

In case of repair: rough idling speed.

Repair: 1

Number 1. slow speed in idle.

Number 5. high speed in idle.

Fig 2: Identifying Roller Cam Follower Mark

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen and remove roller cam followers (1) on exhaust side from hydraulic valve clearance compensating element.

Place all roller cam followers (1) in neat order on special tool 11 4 482 .

Installation note:

Prior to installation of exhaust camshaft, ensure proper installation position of roller cam followers (1).

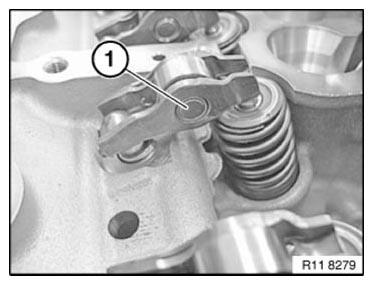

Fig 3: Identifying Roller Cam Followers

Courtesy of BMW OF NORTH AMERICA, INC.

Remove hydraulic valve clearance compensating element (1) on intake side in direction of arrow.

Installation note:

If hydraulic valve clearance compensating elements (1) are reused, they must be placed together with rocker arms in neat order in special tool 11 4 481 .

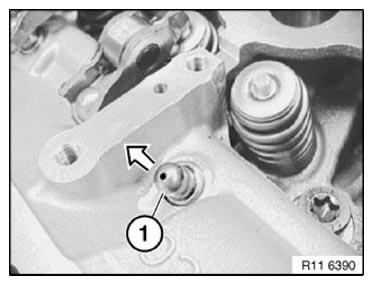

Fig 4: Removing Hydraulic Valve Clearance Compensating Element

Courtesy of BMW OF NORTH AMERICA, INC.

Remove hydraulic valve clearance compensating element (1) on exhaust side in direction of arrow.

Installation note:

If hydraulic valve clearance compensating elements (1) are reused, they must be placed together with rocker arms in neat order in special tool 11 4 482 .

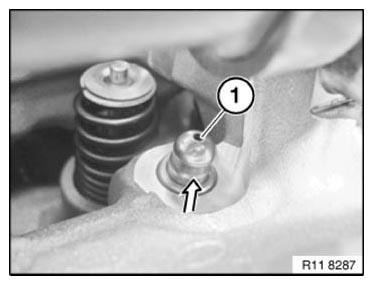

Fig 5: Removing HVC Element

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of DME; if necessary, readjust uniform mixture distribution.
