11 25 671 Replacing piston rings on all pistons (N55)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove all PISTONS .

Measuring side clearance of piston rings in piston ring groove. See 1125 PISTONS WITH RINGS AND PINS (N55) .

NOTE: It is not possible to measure the axial clearance of the M-flex rings.

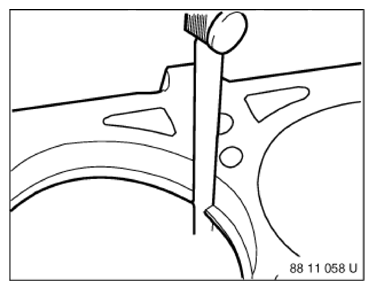

Fig 1: Measuring Piston Rings Side Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

Remove plain rectangular compression ring and stepped ring upwards with piston ring pliers.

The M-flex ring comprises two steel band rings and a bearing spring.

NOTE: The M-flex ring cannot be removed with piston ring pliers.
Put aside all piston rings in correct sequence and installation position.

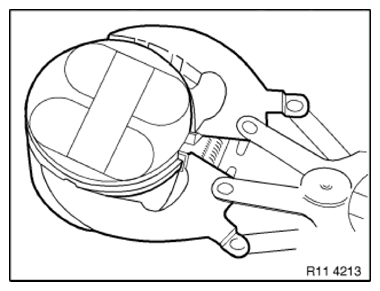

Fig 2: Removing Plain Rectangular Compression Ring And Stepped Ring

Courtesy of BMW OF NORTH AMERICA, INC.

It might not be possible to find the identification on used piston rings.

Installation note:

New pistons may only be installed together with new piston rings.

Insert removed piston ring into cylinder bore hole.

With aid of piston (piston crown), position piston ring in its measuring position.

Determine end clearance with a feeler gauge. See 1125 PISTONS WITH RINGS AND PINS (N55) .

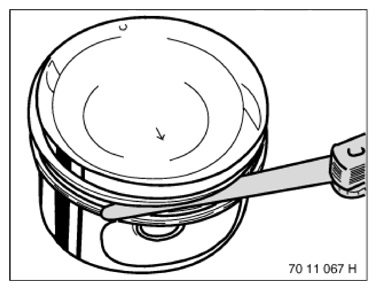

Fig 3: Checking Piston Ring End Clearance Using Feeler Gauge

Courtesy of BMW OF NORTH AMERICA, INC.

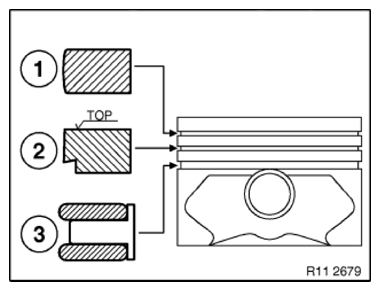

NOTE: Schematic diagram of piston rings.

Installation note:

Plain rectangular compression ring "top"
Piston ring "top"
Steel band with M-flex ring

Fig 4: Identifying Piston Rings
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

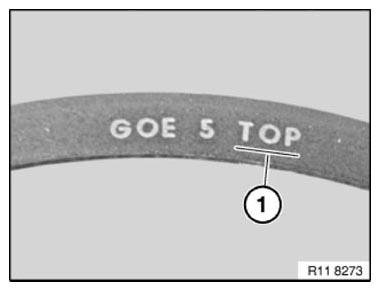

Piston rings with "TOP" identification (1) must point to piston crown.

Fig 5: Piston Rings With TOP Identification

Courtesy of BMW OF NORTH AMERICA, INC.

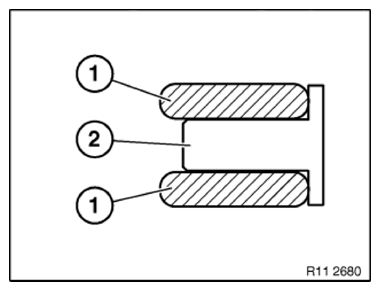

NOTE: The M-flex ring comprises two steel band rings (1) and a bearing spring (2).

Installation note:

Insert bearing spring (2) into piston ring groove and then fit steel band rings (1) so that contact points are offset by approx. 120°.

Fig 6: Identifying M-Flex Ring, Steel Band Rings And Bearing Spring

Courtesy of BMW OF NORTH AMERICA, INC.

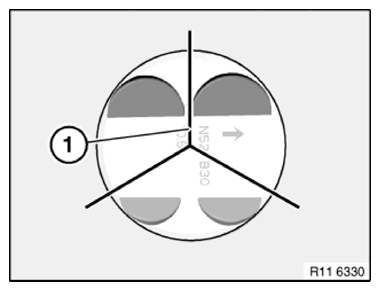

The contact points (1) of the piston rings must be arranged offset by approx. 120°. However, the contact points (1) must not be arranged over the gudgeon pin boss.

NOTE: Graphic of N52.

Fig 7: Identifying Piston Contact Points

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
