11 40 000 Checking oil pressure (M57T2-SCR)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: Drain the full-flow oil filter to prevent excessive oil leakage when removing the oil pressure switch.

IMPORTANT: Protect alternator against engine oil.
Cover alternator with suitable apparatus Risk of damage .

Necessary preliminary work:

Drain OIL FILTER

IMPORTANT: Small amounts of engine oil may emerge when the oil pressure switch is removed.

Disconnect plug connection (1), remove oil pressure switch (2).

Installation note:

Replace sealing ring.

Tightening torque: 12 61 1AZ .

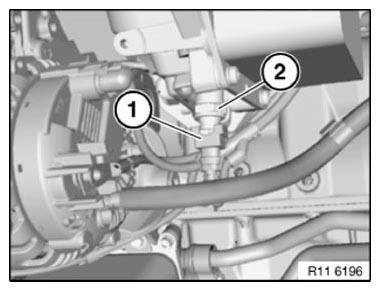

Fig 1: Identifying Oil Pressure Switch Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Install special tool 11 4 050 with sealing ring (1) in place of oil pressure switch.

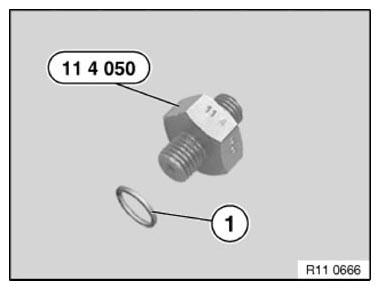

Fig 2: Identifying Special Tool 11 4 050 With Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Check engine oil pressure with DIS Tester

Attach special tool 13 6 054 with sealing ring (1) and special tool 13 6 051 and connect to DIS Tester.

Check engine oil pressure with pressure gauge

Install special tool 13 3 063 and special tool 13 3 061 (pressure gauge).

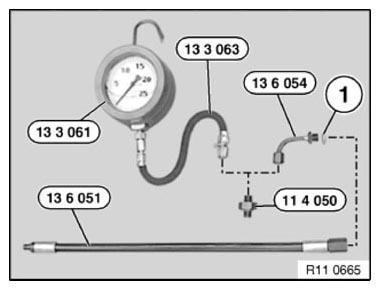

Fig 3: Checking Engine Oil Pressure With DIS Tester

Courtesy of BMW OF NORTH AMERICA, INC.

Start engine and run at idle speed.

Check engine oil pressure.

NOMINAL VALUE .

Remove all special tools.

Reassemble vehicle and set in horizontal position.

Switch off engine, wait approx. 5 minutes and then check engine oil level.

Top up engine oil if necessary.
