11 40 000 Checking engine oil pressure (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

WARNING: Risk of scalding!

NOTE: To check the engine oil pressure, remove the oil pressure switch and install and connect the special tool.

NOTE: A small amount of engine oil emerges when the oil pressure switch is removed.
Have a cleaning cloth ready.

Necessary preliminary work:

Follow BMW diagnosis instruction
Remove OIL PRESSURE SWITCH

Special tool 11 4 050 is equipped with a sealing ring (1).

IMPORTANT: Tightening torque of special tool 11 4 050 max. 20 Nm.

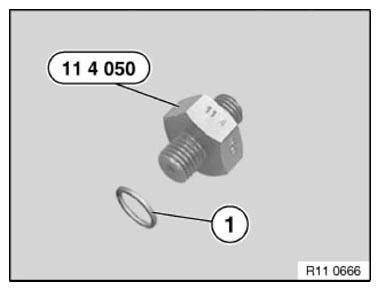

Fig 1: Identifying Special Tool 11 4 050 With Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 11 4 050 into crankcase to max. 20 Nm.

Secure union nut (1) of special tool 13 3 063 to max. 15 Nm.

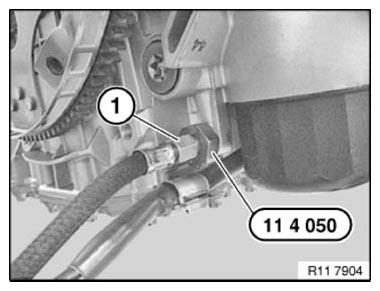

Fig 2: Screwing Special Tool 11 4 050 Into Crankcase

Courtesy of BMW OF NORTH AMERICA, INC.

Checking engine oil pressure with DIS Tester:

Screw special tool 13 6 054 with sealing ring (1) into special tool 13 6 051 and connect to DIS tester.

Checking engine oil pressure with pressure gauge:

Connect special tool 13 3 063 with special tool 13 3 061 (pressure gauge).

Start engine and check engine oil pressure.

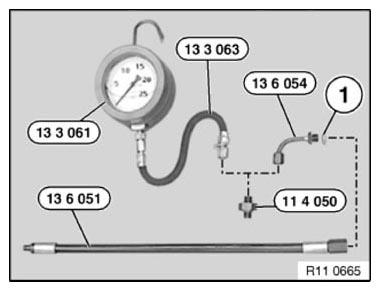

Fig 3: Checking Engine Oil Pressure With DIS Tester

Courtesy of BMW OF NORTH AMERICA, INC.

SPECIFIED VALUE .
