11 40 000 Checking engine oil pressure (N55)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 6 410
11 9 240
11 9 250
13 6 051
2 212 823
11 4 310

IMPORTANT: The regulated oil pump can only be checked and measured with the diagnosis system.
Vehicles with a regulated oil pump have a HYDRAULIC VALVE fitted.
Diagnosis path:

DME Digital Motor Electronics
Complete vehicle
Power train
Engine electronics
Engine oil
Oil-pressure control

Special tool 11 9 250 must be converted for N55

Necessary preliminary tasks:

Connect BMW diagnosis system to vehicle.
Observe diagnosis instructions.
Protect drive belt against dirt
Have a cleaning cloth ready to catch escaping oil

Secure special tool 11 9 250 at hexagon head in a vice.

Release insert (2) using a slotted screwdriver (1) in direction of arrow.

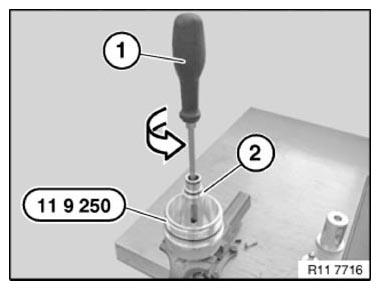

Fig 1: Releasing Insert Using Slotted Screwdriver

G09953860

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw piece (1) on special tool 11 6 410 .

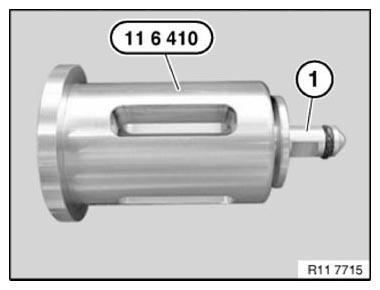

Fig 2: Releasing Screw Piece On Special Tool 11 6 410

G09953861

Courtesy of BMW OF NORTH AMERICA, INC.

Install special tool 11 6 410 in special tool 11 9 250 .

Insert central bolt with a slotted screwdriver (1) hand-tight.

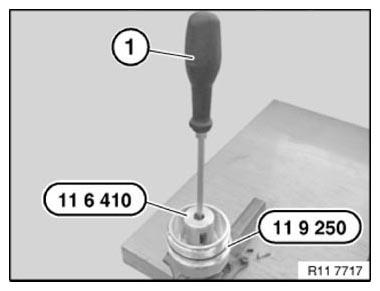

Fig 3: Inserting Central Screw With Slotted Screwdriver

G09953862

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screw piece (1) hand-tight in direction of arrow on special tool 11 6 410 .

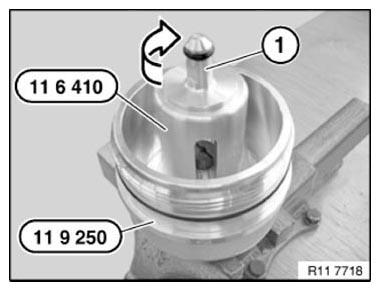

Fig 4: Inserting Screw Piece On Special Tool 11 6 410

G09953863

Courtesy of BMW OF NORTH AMERICA, INC.

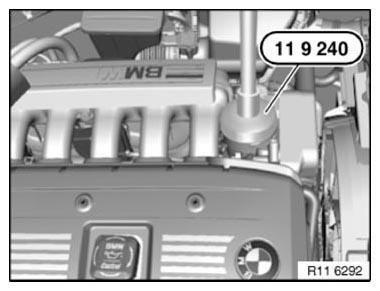

Release oil filter cover with special tool 11 9 240 .

Tightening torque: 11 42 1 AZ .

Fig 5: Releasing Oil Filter Cover Using Special Tool 11 9 240

G09953864

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully detach filter element.

Installation note:

Check all O-rings for damage, replace if necessary.

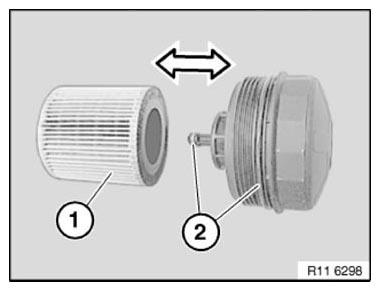

Fig 6: Checking O-Rings

G09953865

Courtesy of BMW OF NORTH AMERICA, INC.

Install filter element (1) in special tool 11 9 250 .

Installation note:

Coat O-ring with engine oil.

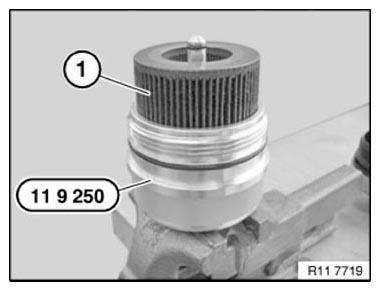

Fig 7: Installing Filter Element In Special Tool 11 9 250

G09953866

Courtesy of BMW OF NORTH AMERICA, INC.

Order number for special tool: Bolt 2 212 823 with 11 4 310.

Screw the pressure sensor (1) hand tight.

Apply light coating of oil to sealing ring at pressure sensor (1) 100 bar.

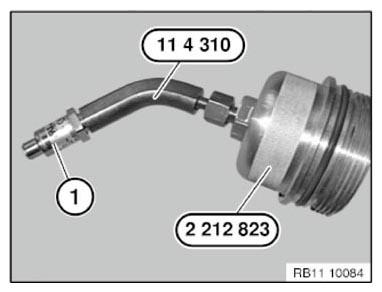

Fig 8: Identifying Pressure Sensor And Special Tool

G09953867

Courtesy of BMW OF NORTH AMERICA, INC.

Measure the engine oil pressure with diagnosis system.

Order number for special tool: Screw 2 212 823 to oil filter housing.

Special tool 11 4 310 on special tool, order number: 2 212 823.

Screw in pressure sensor (1) 100 bar at special tool 11 4 310 (finger-tight).

Connect cable (2) of IMIB (Integrated Measurement Interface Box) to pressure sensor (1) 100 bar.

Graphic N20.

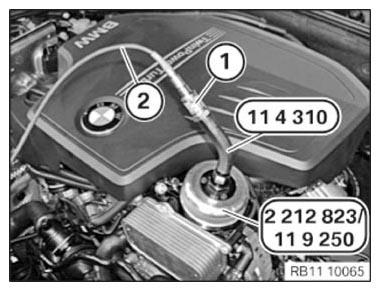

Fig 9: Measuring Engine Oil Pressure With Diagnosis System

G09953868

Courtesy of BMW OF NORTH AMERICA, INC.

Start engine and check engine oil pressure by means of diagnosis.
